#12 - A Complete Guide to Build a Simple Aggregator with Universal Rabbit Hole

Author: @ironaddicteddog, @wei_sol_, @emersonliuuu

[Updated at 2022.9.29]

See the example repo here

TL; DR

In this example, we will demonstrate how to implement a simple aggregator by using Universal Rabbit Hole, step by step.

Things you will be doing

• Instantiate DeFi instances in 1 line of code

• Switch to different DeFi protocol in 1 line of code

• Compose different DeFi protocols in less than 5 lines of code

Things you will NOT be doing

• You won't touch the details of various SDK

• You won't have to encode / decode the on-chain account data

• You won't have to figure out how to assemble the instruction

Overview

We want developers to use DeFi elements as Lego blocks. Universal Rabbit Hole enables developers to utilize various DeFi elements, such as Pool, Farm, Vault, to compose more complex operations without handling enormous amount of client SDK and inconsistent interfaces.

See this guide and this Medium Post for more details

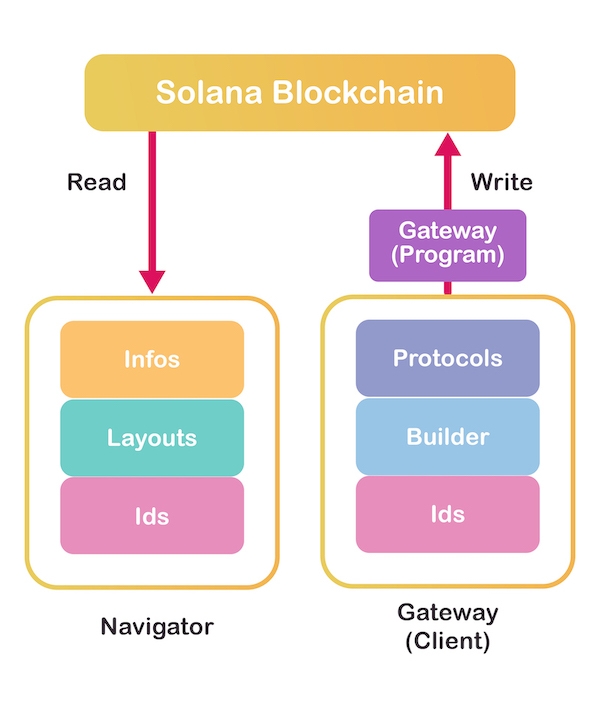

Architecture

There are two modules in Universal Rabbit Hole: Navigator and Gateway:

Navigator (Reader)

Navigator is a Typescript client for instantiating various of kinds of DeFi protocols. You can use it as a standalone dependency in your own project or together with Dappio Gateway.

Gateway (Writer)

Gateway is a CaaS (Compasaility-as-a-Service) that standardizes inter-protocol interaction on Solana to unlock the potential of composability. It has an universal interface for various Solana DeFi elements (Pool / Farm / MoneyMarket / Vault / Leveraged Farm / ...) and serves as a common knowledge base that helps Solana community learn and improve.

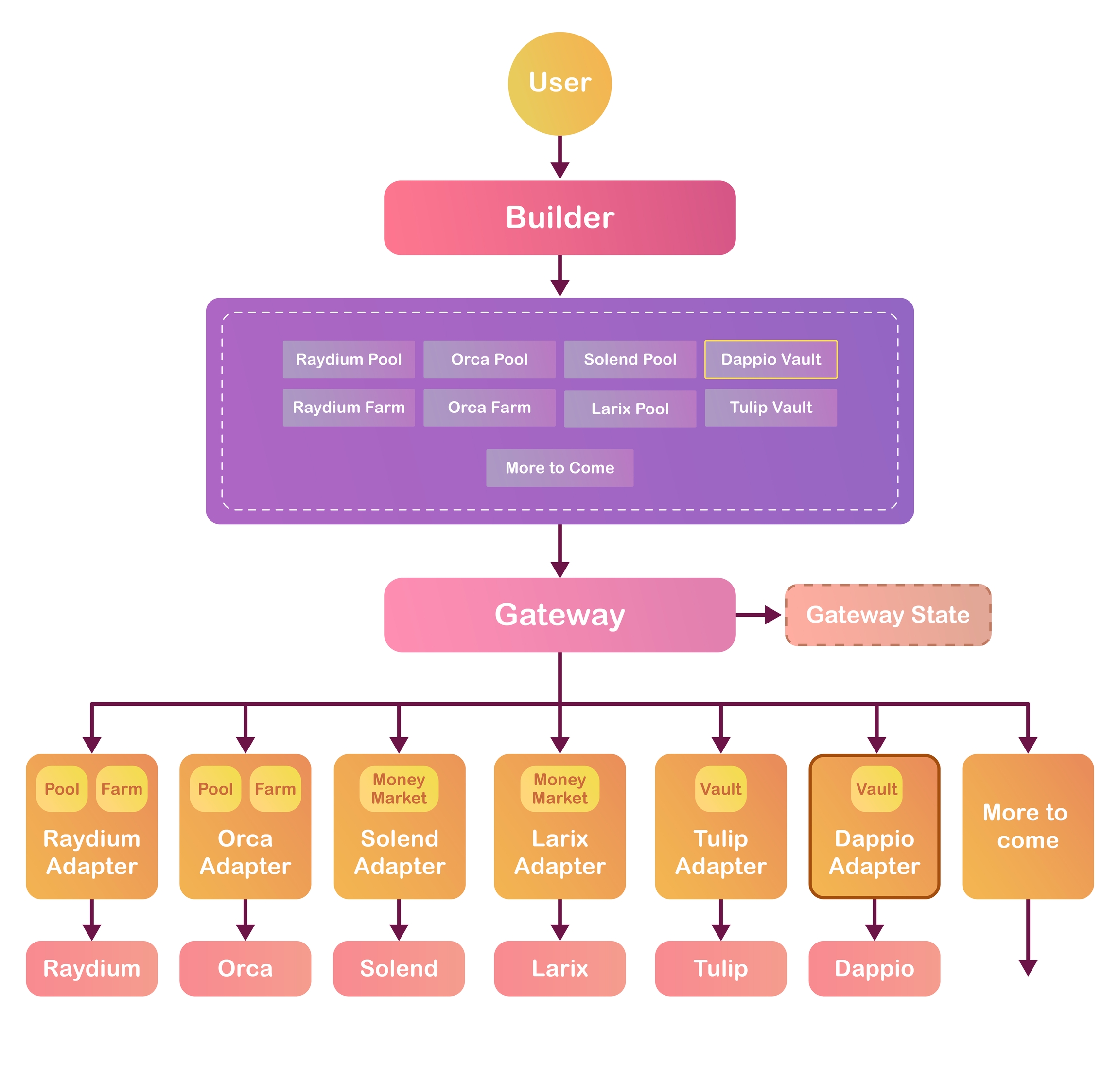

Anatomy of Gateway

Let's take a closer look on Gateway module. There are 4 different components in order to make Gateway function:

• Builder: Off-chain component that helps composing different DeFi actions

• Protocol(s): Off-chain component that packages the specific instruction set of each protocol

• Gateway: On-chain program that receives and dispatches all the transactions, manages state, distributes fees

• Adapter(s): On-chain program that connects base program and Gateway program

While Builder and Protocols are packaged into a npm module, Gateway (program) and Adapters are Solana programs deployed by Dappio (sometimes third-party) to be invoked to interact with Base programs

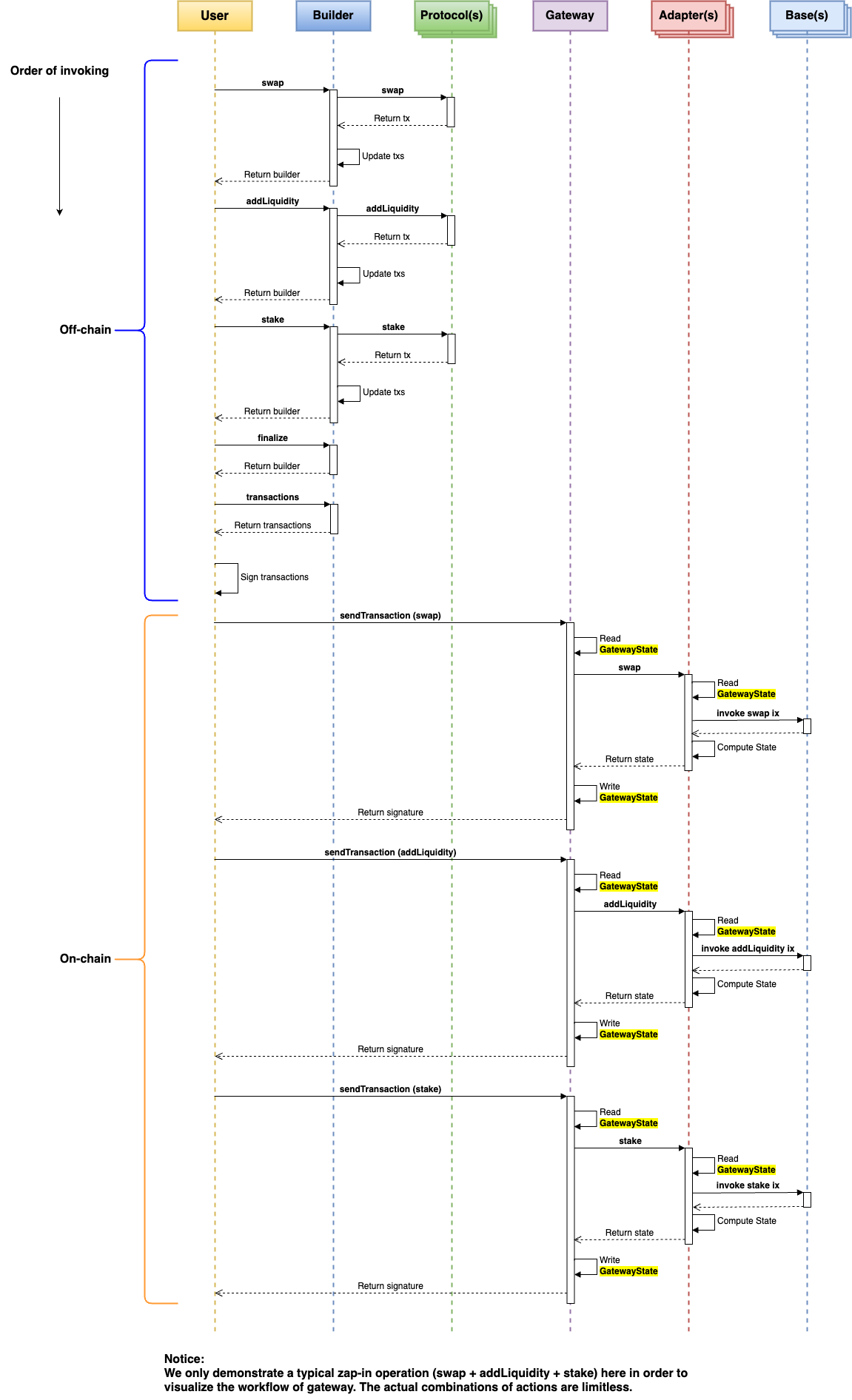

Workflow of Gateway

We can separate these series of operations into 2 distinct sections: off-chain part and on-chain part.

Off-chain Part

• User assembles actions by invoking action setter and providing proper parameters

• Builder composes transactions

On-chain Part

• User sends transactions directly to Gateway program

• Gateway dispatches transactions to their corresponding adapters through CPI (cross-program invocation)

• Adapter invokes Base program through another CPI

Supported Protocols

Following are the current supported protocols:

Program	ID	Type
Gateway	GATEp6AEtXtwHABNWHKH9qeh3uJDZtZJ7YBNYzHsX3FS	-
Adapter Raydium	ADPT1q4xG8F9m64cQyjqGe11cCXQq6vL4beY5hJavhQ5	Pool / Farm
Adapter Orca	ADPTTyNqameXftbqsxwXhbs7v7XP8E82YMaUStPgjmU5	Pool / Farm
Adapter Saber	ADPT4GbWTs9DXxo91YGBjNntYwLpXxn4gEbxfnUPfQoB	Pool / Farm
Adapter Lifinity	ADPTF4WmNPebELw6UvnSVBdL7BAqs5ceg9tyrHsQfrJK	Pool
Adapter Solend	ADPTCXAFfJFVqcw73B4PWRZQjMNo7Q3Yj4g7p4zTiZnQ	MoneyMarket
Adapter Francium	ADPTax5HwQ2ZWVLmceCek8UrqMhwCy5q3SHwi8W71Kv2	MoneyMarket
Adapter Larix	ADPTLQQ1Bwgybb2qge7QKSW7woDrhEjcLWG642qP2X4	MoneyMarket / Farm
Adapter Tulip	ADPT9nhC1asRcEB13FKymLTatqWGCuZHDznGgnakWKxW	MoneyMarket / Vault
Adapter Friktion	ADPTzbsaBdXA3FqXoPHjaTjPfh9kadxxFKxonZihP1Ji	Vault
Adapter Katana	ADPTwDKJTizC3V8gZXDxt5uLjJv4pBnh1nTTf9dZJnS2	Vault
Adapter NFTFinance	ADPTyBr92sBCE1hdYBRvXbMpF4hKs17xyDjFPxopcsrh	NFTFinance

Get Started

Follow the offical documentation of Universal Rabbit Hole to get started

References

• https://guide.dappio.xyz/the-universal-rabbit-hole

• https://medium.com/dappio-wonderland/the-solution-to-composability-universal-rabbit-hole-28b817cc0fd4
